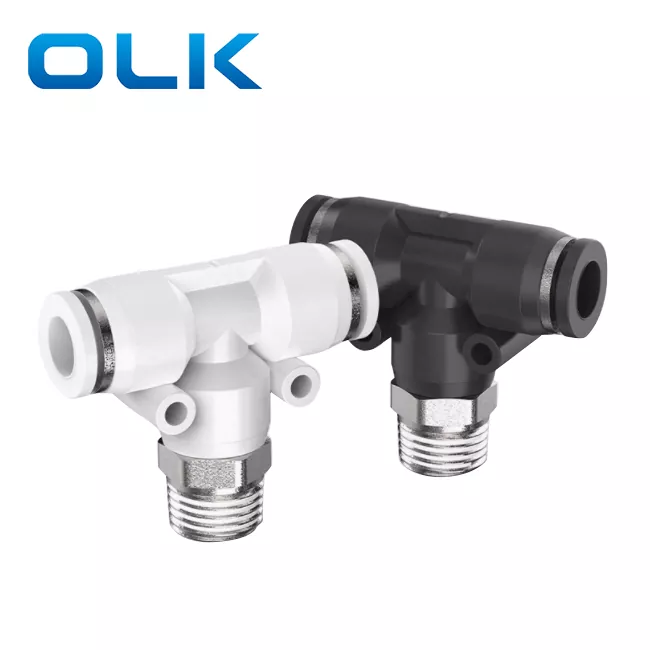

PB-haru tee push torude paigaldamisel on sirge liidu sissetungimine, mida kasutatakse kahe toru ühendamiseks pneumaatilises süsteemis, tagades sujuva õhuvoolu ja usaldusväärse tihendamise.
PB-paigaldamise võtmefunktsioonid: kiire ja hõlpsa paigaldamise surumine; sirge kahe otsaga ühendus
|
Tellimiskood |
|||
|
Pb |
8 |
- |
01 |
|
Mudel |
Toru suurus (mõõdik) |
|
Niititüüp (55 ° sirge toruga keermega) |
|
PB -seeria sobitamine |
4: 4mm |
|
01: G1/8 |
|
|
6: 6mm |
|
02: G1/4 |
|
|
8: 8mm |
|
03: G3/8 |
|
|
10: 10mm |
|
04: G1/2 |
|
|
12: 12mm |
|
|
|
|
14: 14mm |
|
|
|
|
16: 16mm |
|
|
|
Vedelik |
Õhk/vesi (tingimuslik)/vaakum |
|
Töörõhk |
0-1.0MPA |
|
Vaakumisurve |
-100 kPa (10 Torr) |
|
Töötemperatuur |
-10-60 ℃ |
|
Materiaalne |
Nailon (PA), polüuretaan (PU) |
|
Tolli toru paigaldamine |
Metri toru sobitamine |
φD |
R |
A |
B |
E |
H2 |
φD |
|

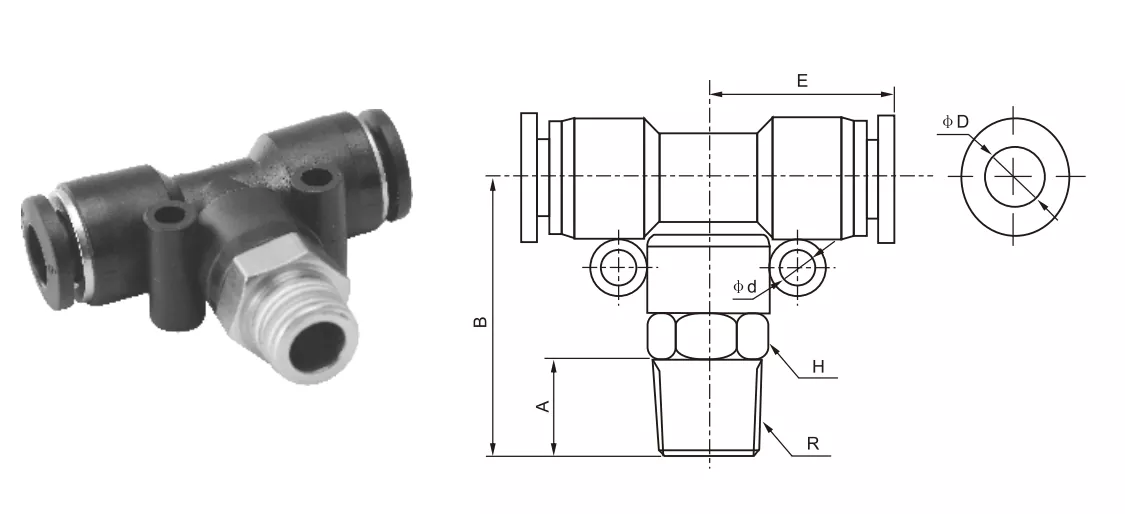

PB5/32-M5 |
PB4-M5 |
4 |
M5 |
4.5 |
25.4 |
18.6 |
10 |
/ |
|
PB5/32-01 |
PB4-01 |
4 |
R1/8 |
7 |
25.4 |
18.6 |
10 |
/ |
|
PB5/32-02 |
PB4-02 |
4 |
R1/4 |
9 |
27.8 |
18.6 |
14 |
/ |
|
PB1/4-M5 |
PB6-M5 |
6 |
M5 |
4.5 |
26.8 |
20.8 |
12 |
3.5 |
|
PB1/4-01 |
PB6-01 |
6 |
R1/8 |
6.5 |
37.6 |
20.8 |
12 |
3.5 |
|
PB1/4-02 |
PB6-02 |
6 |
R1/4 |
9 |
30 |
20.8 |
14 |
3.5 |
|
PB1/4-03 |
PB6-03 |
6 |
R3/8 |
10 |
30.6 |
20.8 |
17 |
3.5 |
|
PB1/4-04 |
PB6-04 |
6 |
R1/2 |
10 |
32.5 |
20.8 |
21 |
3.5 |
|
PB5/16-01 |
PB8-01 |
8 |
R1/8 |
8 |
31.5 |
22.9 |
14 |
4.5 |
|
PB5/16-02 |
PB8-02 |
8 |
R1/4 |
10 |
33 |
22.9 |
14 |
4.5 |
|
PB5/16-03 |
PB8-03 |
8 |
R3/8 |
10 |
33.6 |
22.9 |
17 |
4.5 |
|
PB5/16-04 |
PB8-04 |
8 |
R1/2 |
11 |
35 |
22.9 |
21 |
4.5 |
|
PB3/8-01 |
PB10-01 |
10 |
R1/8 |
8 |
37 |
27.8 |
17 |
4 |
|
PB3/8-02 |
PB10-02 |
10 |
R1/4 |
10 |
38 |
27.8 |
17 |
4 |
|
PB3/8-03 |
PB10-03 |
10 |
R3/8 |
10 |
38 |
27.8 |
17 |
4.5 |
|
PB3/8-04 |
PB10-04 |
10 |
R1/2 |
11 |
39 |
27.8 |
21 |
4.5 |
|
PB1/2-01 |
PB12-01 |
12 |
R1/8 |
8 |
37.5 |
29.5 |
19 |
5 |
|
PB1/2-02 |
PB12-02 |
12 |
R1/4 |
10 |
40 |
29.5 |
19 |
5 |
|
PB1/2-03 |
PB12-03 |
12 |
R3/8 |
10 |
40 |
29.5 |
19 |
5 |
|
PB1/2-04 |
PB12-04 |
12 |
R1/2 |
11 |
41 |
29.5 |
21 |
5 |
|
|
PB14-03 |
16 |
R3/8 |
11 |
46.3 |
34.5 |
24 |
4 |
|
|
PB14-04 |
16 |
R1/2 |
12 |
47.3 |
34.5 |
27 |
4 |
|
