Brand:
OLKType:
BSPT Male Thread (R thread) straightColor:

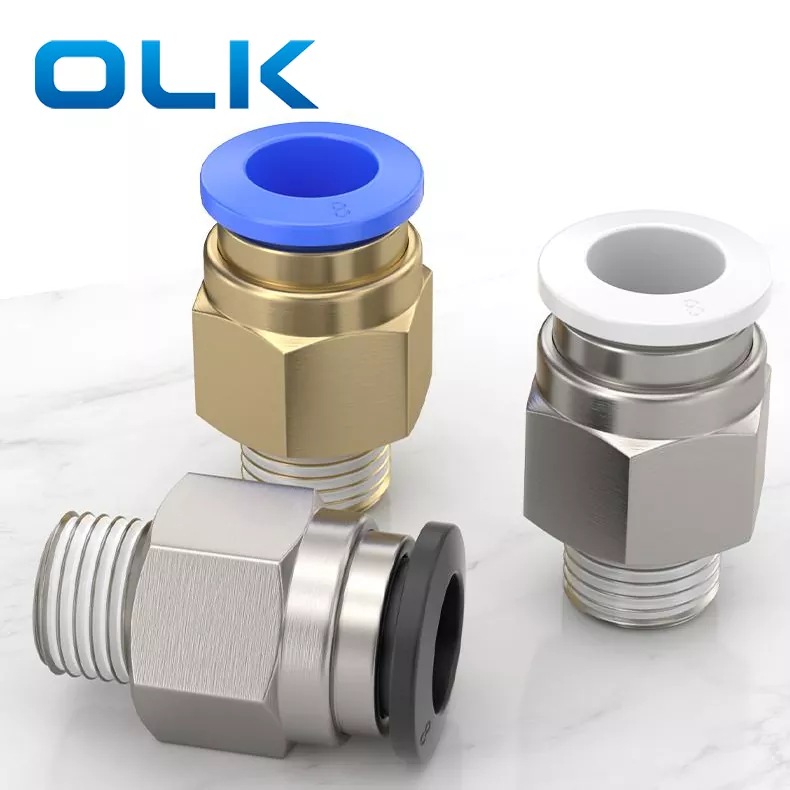

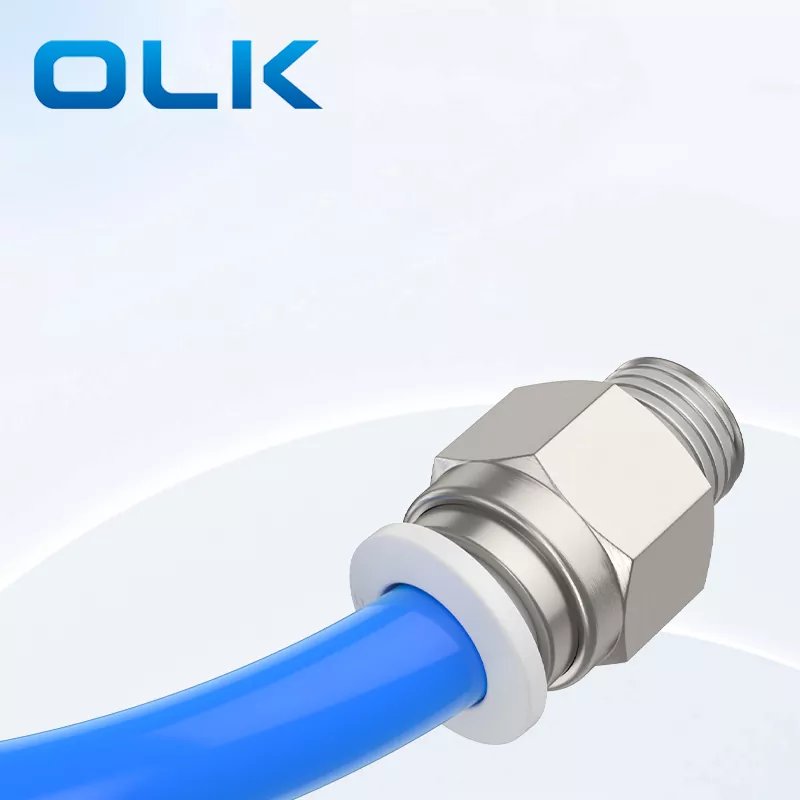

Black,White,BlueArvuti väliskeermega sirgelt surutav toruliitmik on sirget tüüpi pneumaatiline pistik, mis on loodud torude kiireks ja turvaliseks ühendamiseks seadme portidega. Sellel on kompaktne struktuur, tugev tihend ja kiire paigaldamine.
|
Tellimiskood |
|||
|
PC |
8 |
-- |
01 |
|
Mudel |
Toru suurus (meetriline) |
|
Keerme tüüp (55° sirge torukeere) |
|
|
4:4 mm |
|
01:G1/8 |
|
|
6:6 mm |
|
02:G1/4 |
|
|
8:8 mm |
|
03:G3/8 |
|
|
10:10 mm |
|
04:G1/2 |
|
|
12:12 mm |
|
|
|
|
14:14 mm |
|
|
|
|
16:16 mm |
|
|
|
Vedelik |
Õhk/vesi (tingimuslik)/vaakum |
|
Töörõhk |
0-1,0 MPa |
|
Vaakumrõhk |
-100 kpa (10 Torr) |
|
Töötemperatuur |
-10-60 ℃ |
|
Materjal |
NAILON (PA), polüuretaan (PU) |
|
Tollise toruliitmik |
Meetriline toruliitmik |

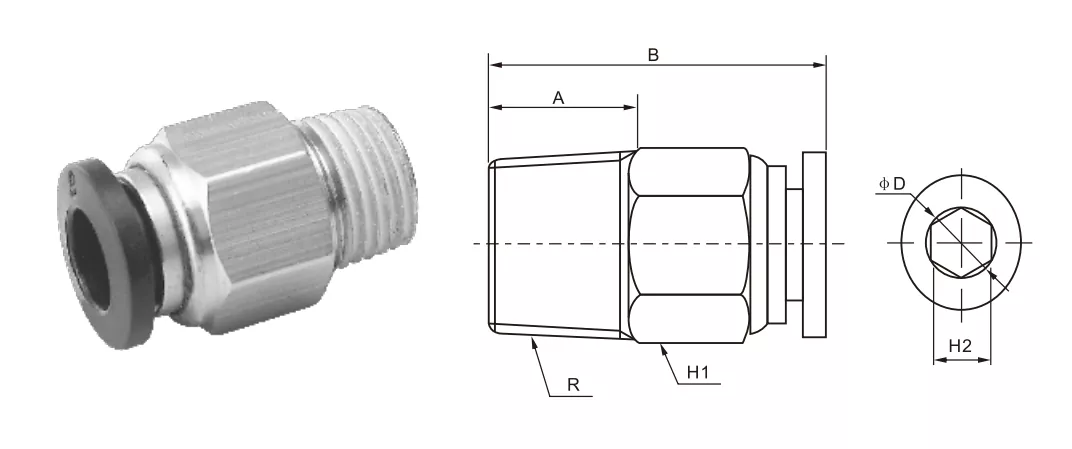

φD |
R |
A |
B |
H1 |
H2 |
|
PC5/32-M5 |
PC4-M5 |
4 |
M5 |
4.5 |
21.8 |
10 |
2 |
|
PC5/32-01 |
PC4-01 |
4 |
R1/8 |
6.5 |
20.5 |
10 |
3 |
|
PC5/32-02 |
PC4-02 |
4 |
R1/4 |
9 |
19.5 |
14 |
3 |
|
PC1/4-M5 |
PC6-M5 |
6 |
M5 |
4.5 |
22.8 |
12 |
2 |
|
PC1/4-01 |
PC6-01 |
6 |
R1/8 |
6.5 |
22.2 |
12 |
4 |
|
PC1/4-02 |
PC6-02 |
6 |
R1/4 |
9 |
22.2 |
14 |
4 |
|
PC1/4-03 |
PC6-03 |
6 |
R3/8 |
10 |
21.5 |
17 |
4 |
|
PC1/4-04 |
PC6-04 |
6 |
R1/2 |
10 |
23 |
21 |
4 |
|
PC5/16-01 |
PC8-01 |
8 |
R1/8 |
8 |
26.8 |
14 |
4 |
|
PC5/16-02 |
PC8-02 |
8 |
R1/4 |
10 |
25.2 |
14 |
6 |
|
PC5/16-03 |
PC8-03 |
8 |
R3/8 |
10 |
22.2 |
17 |
6 |
|
PC5/16-04 |
PC8-04 |
8 |
R1/2 |
11 |
23.7 |
21 |
6 |
|
PC3/8-01 |
PC10-01 |
10 |
R1/8 |
8 |
30.7 |
17 |
4 |
|
PC3/8-02 |
PC10-02 |
10 |
R1/4 |
10 |
31 |
17 |
6 |
|
PC3/8-03 |
PC10-03 |
10 |
R3/8 |
10 |
29.5 |
17 |
8 |
|
PC3/8-04 |
PC10-04 |
10 |
R1/2 |
11 |
25.2 |
21 |
8 |
|
PC1/2-01 |
PC12-01 |
12 |
R1/8 |
8 |
31.7 |
19 |
4 |
|
PC1/2-02 |
PC12-02 |
12 |
R1/4 |
10 |
33.2 |
19 |
6 |
|
PC1/2-03 |
PC12-03 |
12 |
R3/8 |
10 |
30 |
19 |
8 |
|
PC1/2-04 |
PC12-04 |
12 |
R1/2 |
11 |
30 |
21 |
8 |
|
|
PC14-03 |
14 |
R3/8 |
11 |
38 |
24 |
6 |
|
|
PC14-04 |
14 |
R1/2 |
12 |
39 |
24 |
8 |
|
|
PC16-03 |
16 |
R3/8 |
13 |
39 |
24 |
10 |
|
|
PC16-04 |
16 |
R1/2 |
15 |
39 |
27 |
12 |
Mis materjalist on arvuti pistik tehtud?
vask

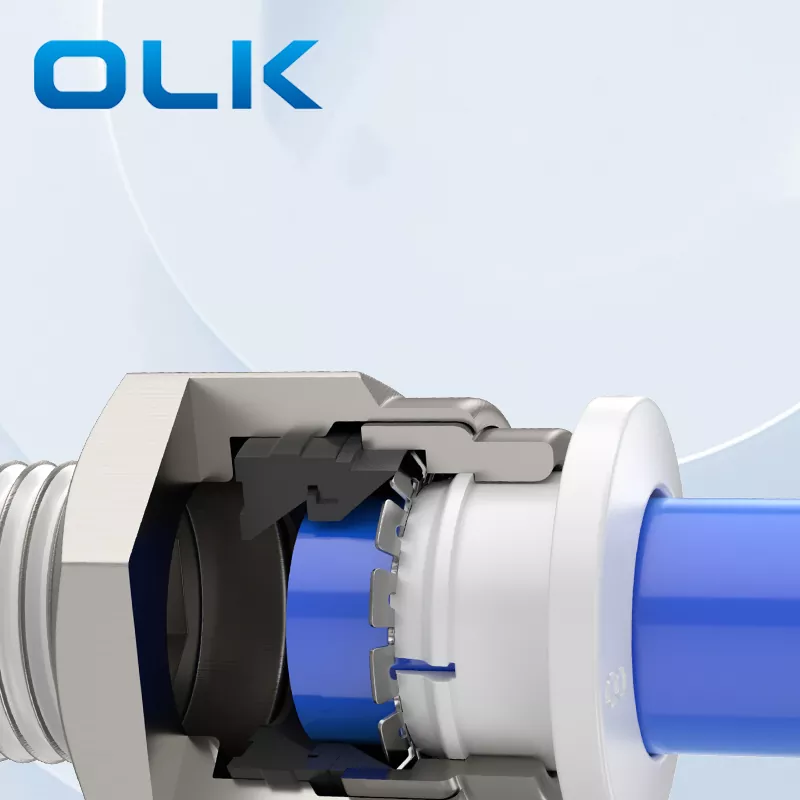

Mis on ühendustoru liitmiku osade nimed?
Kiiresti ühendatav toruliitmiku sisemine struktuur: vabastus, tsingisulamist kaardikomplekt, lukuklambri vedru, lukuhülss, klambri tihendusrõngas, ülitugev plast
Mis tüüpi arvuti niit on?
See on meetriline niit, M tähistab.
